HM-350 Metal highlights machine

HM-350 Metal highlights machine

HM-350 Metal highlights machine is special CNC machine tool equipment used for precision metal parts processing and mobile phone parts processing. After the fine mechanical design, high quality parts.

tel us:  (86)0769-82819981

Introduction Specification Date download

HM-350  chooses excellent Delta/ Bao yuan servo motor as a driving force,and goes with Taiwan PMI / Silver imported grinding high accuracy C3 grinding ball screw and guide rail, can do the three-dimensional cutting for aluminum sheet, stainless steel, ABS, PVC, epoxy resin, synthetic stone and other materials. Applicable to high light, panel chamfering, cutting, trimming for mobile phones, digital cameras, MP3, MP4, DVD, PDA and other products, also can be used for processing of palm, signs, models, relief, fixture and so on.

Common name
HM-350 highlights machine
HM-350 Mobile phone highlights machine
HM-350 Metal highlights machine
HM-350 CNChighlights machine

Application industry

Huaxin HM-350 highlights machine is professional CNC machine tool equipment used for metal highlights processing, widely used in mobile phones OEM and spare parts production, metal processing, handicraft processing and other industries. HM-350 owns the accuracy one level higher than ordinary CNC cutting equipment, stable and efficient, a good assistant of production enterprises.


Application scenarios

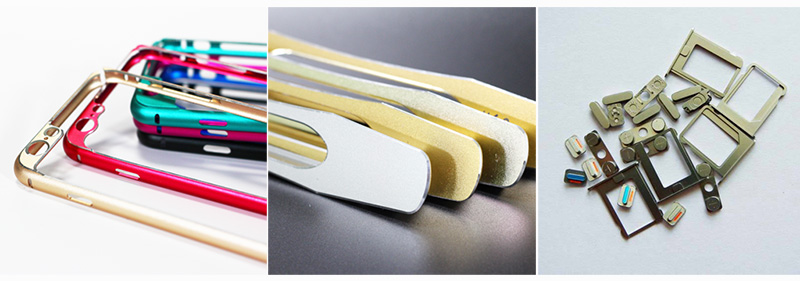

HM-350 highlights machine is metal highlights professional equipment, can be used for metal parts production of mobile phone and 3 c electronic products. Also can be applied for processing of cell phone metal button, open the key, the volume button, sim card slot, camera lens metal outer ring.

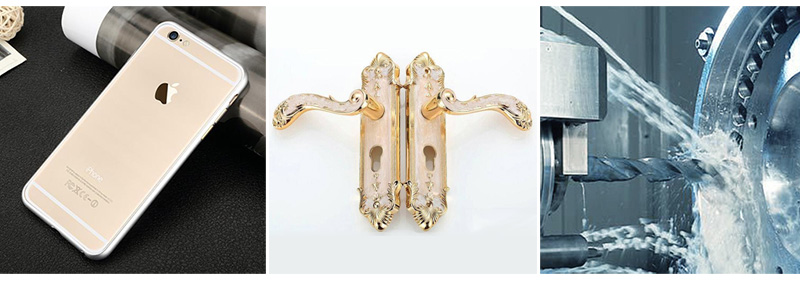

In the field of family decoration, can be used in processing of high-grade locks, windows and metal parts.Can be used for metal crafts sculpture, specular chamfering processing. By using different tools, it  can also be used for cutting, drilling and tapping for alloy, aluminum, stainless steel parts with good accuracy and high efficiency.


Characteristics of the equipment
1.Main structure of Machine tool: adopt high quality marble, good effect of shock absorption ,not affected by temperature, high machining accuracy, perfect stability when high speed running

2. Major parts: High precision of silver grinding ball screw (0.008/300), Taiwan high precision linear P level guide , Delta/Baoyuan servo motor, Taiwan frequency converter, Japan high-precision electrical accessories of Omron/Chengtai/Delixi, Delta/Bao yuan carving control system, 40000 turn high speed rotating shaft

3.Control software: Chinese interface, running under WINDOWS system, can receive standard 3 d G code format and HP PLT and Type3 CAXA CAD format, can directly accept Cimatron, MasterCAM, UG, etc all kinds of original post processing, can also connected with 2d design software such as AUTOCAD, Core/DRAW , it also has 3 d dynamic display tracking, automatic knife, jump for execution (breakpoint memory function, easy and quick operation.

4.Lubricating systems: the screw on the machine tool, the precision of guide rail and other key parts are equipped with oil, manual control of the oil supply, working state can be maintained.


5.Dustproof system: precision machine tools on the screw, guide rail and other key parts have dustproof accessories, dust protection well.

6.Projection alarm function: power over-voltage and under-voltage protection alarm function . Servo motor, inverter and other protection alarm function.

7.The knife system: Automatic and manual operation both available

Type

HM-350

Main Spindle speed

100000rpm/min

Numerical control system

Delta/Baoyuan system

Quantity of main spindle

1 set

Shape Dimension

1100*1200*1520

Spindle chuck

4mm/6mm

Server system

Delta/Baoyuan servo motor

Spindle power

0.75KW









Triaxial working stroke

400*350*110

The rated voltage

220V/50HZ

System resolution

0.001mm

Worktable load

20KG

positioning accuracy

0.005mm

Height can be loaded

150mm

Repeat positioning accuracy

0.005mm

Maximum power of the machine

4KW

Three-axis verticality

0.01/300mm

Machine weight

1500KG

Maempty walking speed

12000mm/min

Maximum processing speed

9000mm/min


...
