HG-1150 four heads carved machine

HG-1150 four heads carved machine

Through the fine mechanical industrial design, HG - 1150 four glass carved machine enjoys reasonable structure and perfect precision, which marked as classics product in the industry supplied by...

tel us:  (86)0769-82819981

Introduction Specification Date download

Product introduction
HG-1150 chooses excellent Fushi/ Zhongwei servo motor as a driving force,and goes with Taiwan PMI / Silver imported grinding high accuracy C3 grinding ball screw and guide rail, can do the three-dimensional cutting for Glass lenses, aluminum sheet, stainless steel, ABS, PVC, epoxy resin, synthetic stone and other materials. Applicable to high light, panel chamfering, cutting, trimming for mobile phones, digital cameras, MP3, MP4, DVD, PDA and other products, also can be used for processing of palm, signs, models, relief, fixture, glass and so on.

Common names
HG-1150 Glass machine
HG-1150 Glass carved machine
HG-1150 Four heads carved glass machine
HG-1150 Four axis carved glass machine
HG-1150 Mobile phone glass carved machine
HG-1150 Mobile phone cover plate carved machine
HG-1150 Acrylic engraving machine

Application of the industry

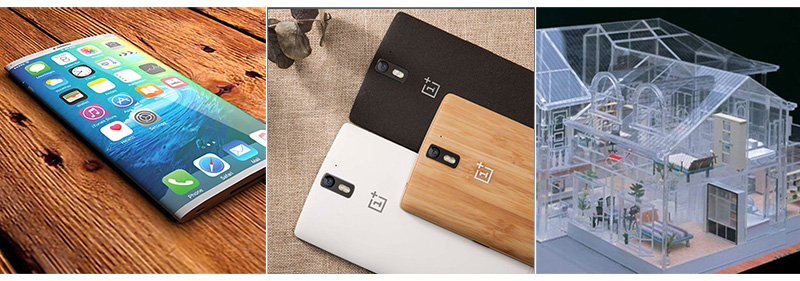

Huaxin carved machine is widely used in mobile phone manufacturing, mobile phone accessories processing, glass handicraft production, acrylic craft production.


Application scenarios

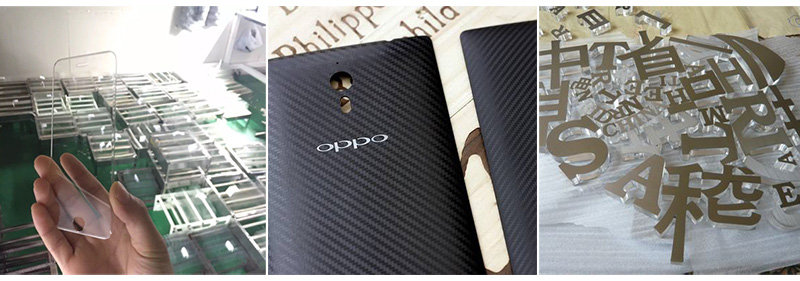

Huaxin carved machine can be used in mobile phones glass and mobile phone screen plate processing, mobile toughened film processing, mobile phone plastic back cover sculpture, glasses glass grinding processing, acrylic and PC material processing, luminous characters and crystal production and processing.


Characteristics of the equipment
1.Main structure of Machine tool: adopt high quality marble, good effect of shock absorption ,not affected by temperature, high machining accuracy, perfect stability when high speed running.

2.Major parts: Taiwan PMI/high precision of silver C3 level grinding ball screw (0.008/300), Taiwan PMI high precision linear P level original guide ,Fushi/Zhongwei servo motor, Delta frequency converter, Japan high precision switches, Bao yuan carving control system, 60000 turn pneumatic tool change spindle.

3.Control software: Chinese interface, running under WINDOWS system, can receive standard 3 d G code format and HP PLT and Type3 CAXA CAD format, can directly accept Cimatron, MasterCAM, UG, etc all kinds of original post processing, can also connected with 2d design software such as AUTOCAD, Core/DRAW , it also has 3 d dynamic display tracking, automatic knife, jump for execution (breakpoint memory function, easy and quick operation.

4.Lubricating systems: the screw on the machine tool, the precision of guide rail and other key parts are equipped with oil, automatic control of its fuel supply, working state can be maintained.

5.Dustproof system: precision machine tools on the screw, guide rail and other key parts have dustproof accessories, dust protection well.

6.Projection alarm function: power over-voltage and under-voltage protection alarm function . Servo motor, inverter and other protection alarm function.

7.The knife system: Automatic and manual operation both available.

Technical parameters


Type

HG-1150

Main Spindle speed

60000rpm/min

Numerical control system

Bao yuan/Zhongwei system

Quantity of main spindle

4 set

Shape Dimension

1460*1780*1600

Spindle chuck

4mm/6mm

Server system

Bao yuan/Zhongwei servo motor

Spindle power

1.8KW

Table size

1150*600

Rated voltage

220V/50HZ

Triaxial working stroke

650*500*90

Worktable load

200KG

System resolution

0.001mm

Height can be loaded

90mm

positioning accuracy

0.005mm

Maximum power of the machine

8KW

Repeat positioning accuracy

0.005mm

Machine weight

2200KG

Four-axis verticality

0.02/300mm

Maximum processing speed

9000mm/min

Maempty walking speed

12000mm/min



...
